671 EDC17 CP49 IROM TC1797
| Pin | Color | Description |
| Pin 1,18 | Red | +12V |
| Pin 2 | Black | Ground |
| Pin 56 | White | CAN-H |
| Pin 55 | Green | CAN-L |

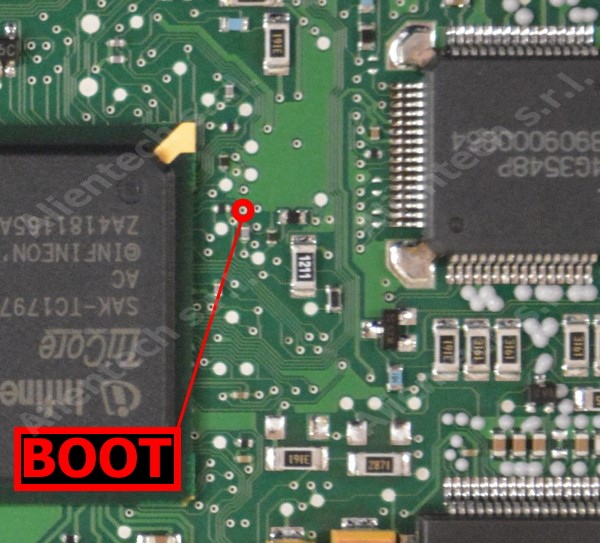

| Soldered wire | Gray with alligator clip | BOOT |
| Pin | Color |
|---|---|
| 11 | Not Used |
| 12 | Not Used |
| 13 | Not Used |
| 14 | Not Used |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Not Used |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Not Used |
| 21 | Not Used |
| 22 | Not Used |
| 23 | Orange |
| 24 | Yellow |
| 25 | Not Used |
| 26 | Not Used |
