197 EDC17 CP05 XROM TC1796

Дата публикации: 14 августа 2018.

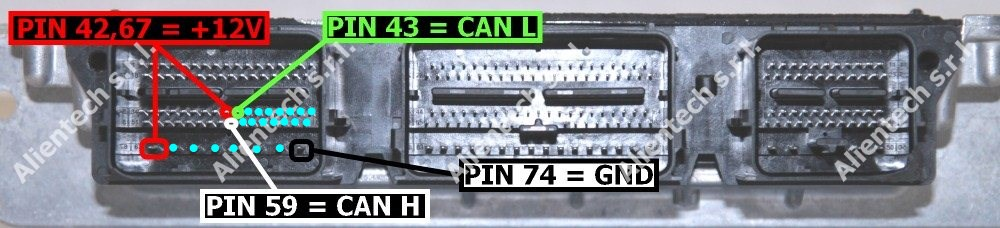

Pin	Color	Description
Pin 42,67	Red	+12V
Pin 74	Black	Ground
Pin 59	White	CAN-H
Pin 43	Green	CAN-L

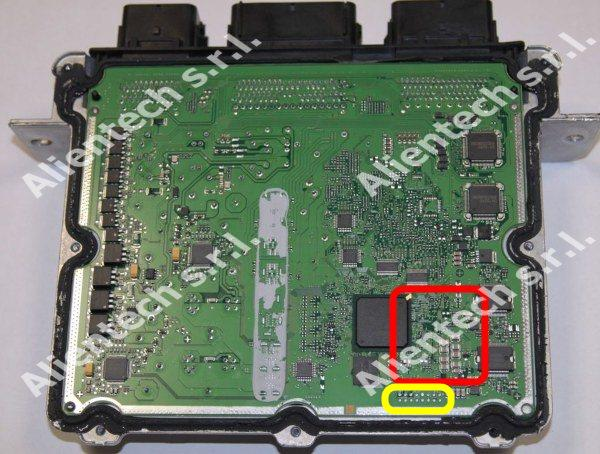

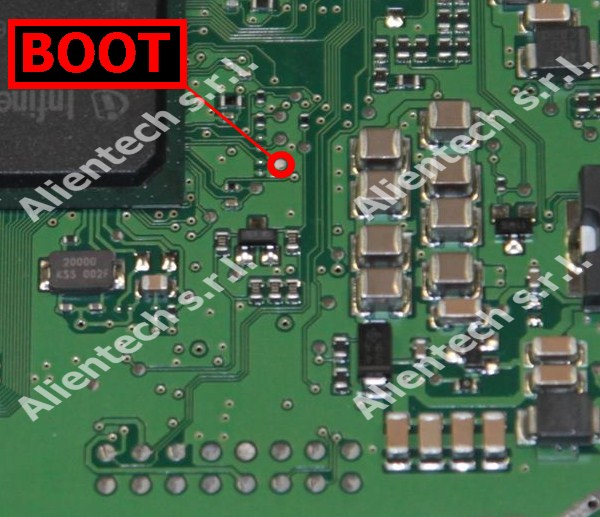

Wire soldered to the three pins	Gray with alligator clip	BOOT
