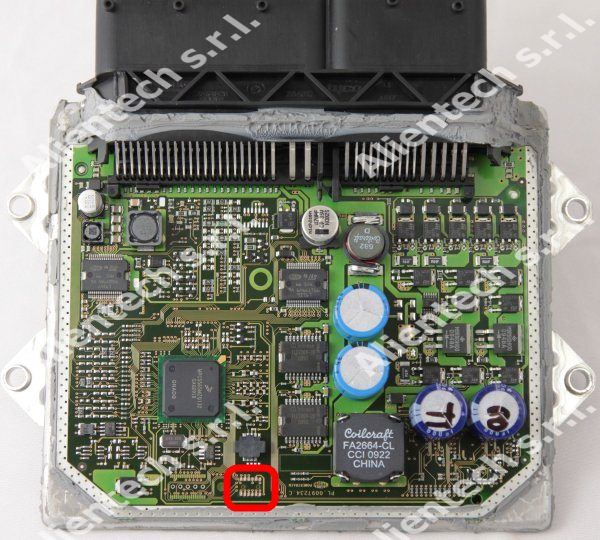

303 MAGNETI MARELLI MJ8DF JTAG MPC
Cable 14P600KT02

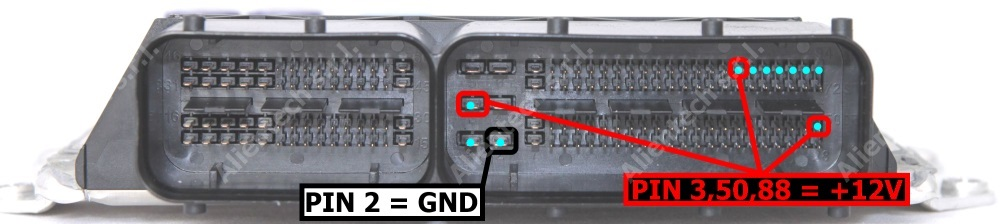

| Pin | Color | Description |
| Pin 3,50,88 | Red, Orange | +12V |
| Pin 2 | Black | Ground |

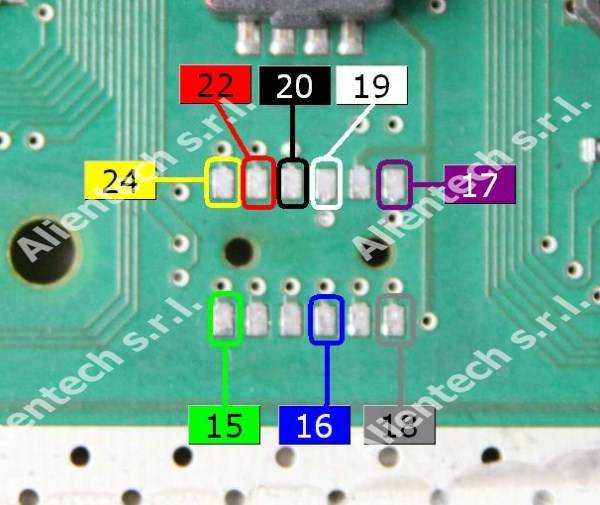

| Pin | Color |
|---|---|
| 11 | Not Used |
| 12 | Not Used |
| 13 | Not Used |
| 14 | Not Used |
| 15 | Green |
| 16 | Blue |
| 17 | Purple |
| 18 | Gray |
| 19 | White |
| 20 | Black |
| 21 | Not Used |
| 22 | Red |
| 23 | Not Used |
| 24 | Yellow |
| 25 | Not Used |
| 26 | Not Used |
