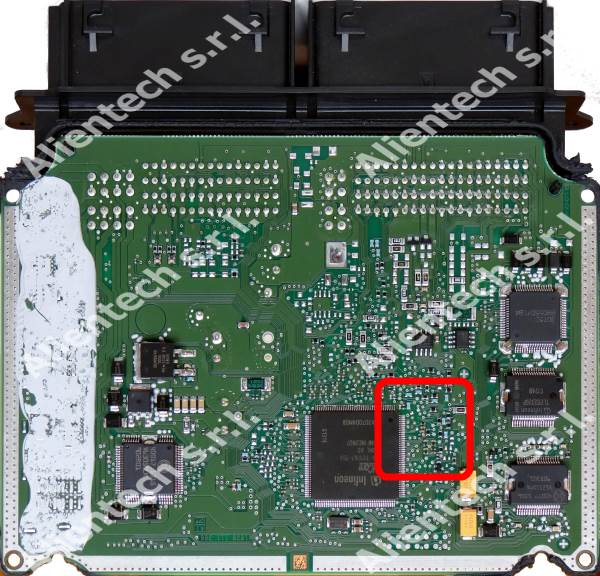

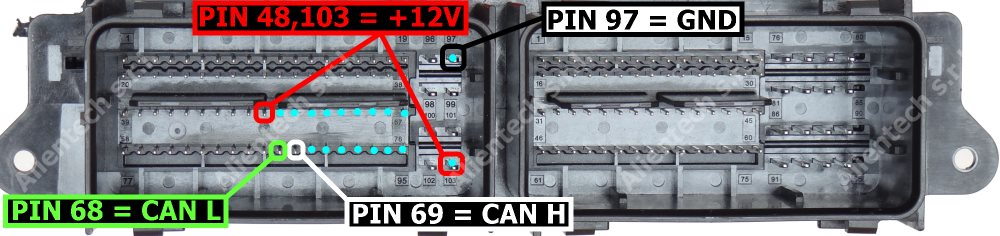

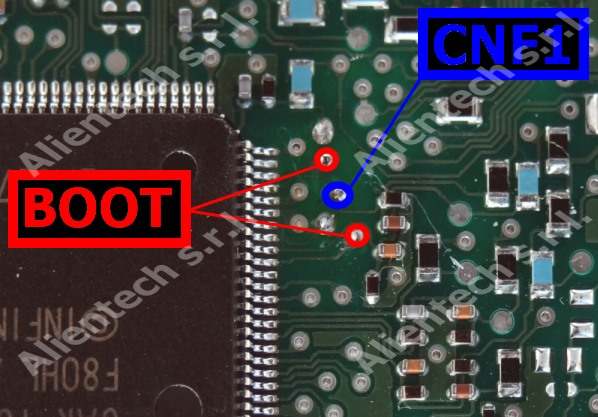

586 MED17.2 IROM TC1767 TPROT Дата публикации: 14 августа 2018. Pin Color Description Pin 48,103 Red +12V Pin 97 Black Ground Pin 69 White CAN-H Pin 68 Green CAN-L Wire soldered to the two pins Gray with alligator clip BOOT Soldered wire Blue with alligator clip CNF1 Назад Вперед
