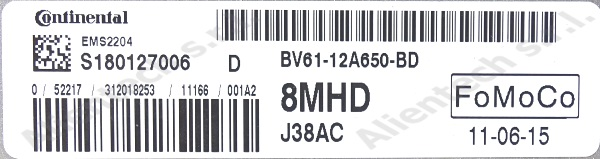

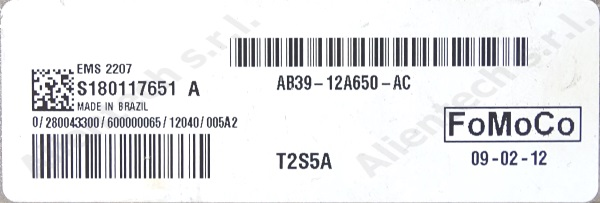

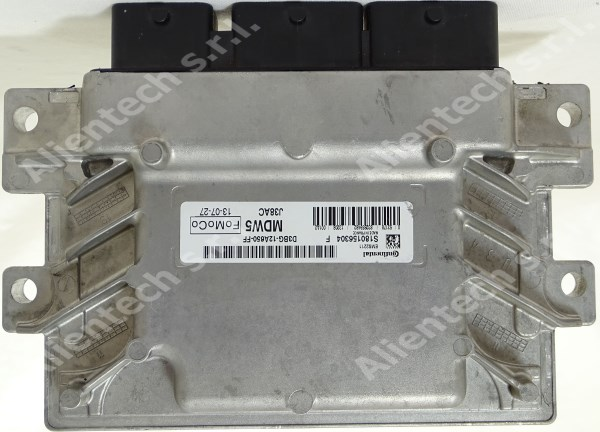

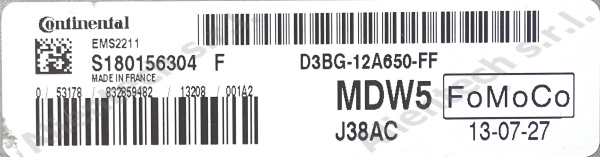

749 CONTINENTAL EMS2204,2207,2211 IROM TC1738 TPROT

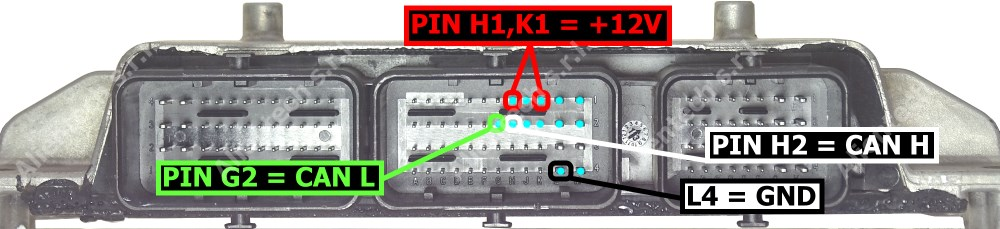

| Pin | Color | Description |
| Pin H1,K1 | Red | +12V |
| Pin L4 | Black | Ground |
| Pin H2 | White | CAN-H |
| Pin G2 | Green | CAN-L |

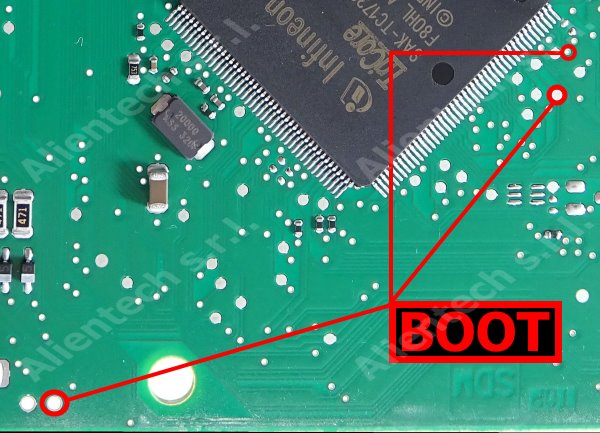

| Wire soldered to the three pins | Gray with alligator clip | BOOT |
| Pin | Color | Description |
| Pin H1,K1 | Red | +12V |
| Pin L4 | Black | Ground |
| Pin H2 | White | CAN-H |
| Pin G2 | Green | CAN-L |
| Wire soldered to the three pins | Gray with alligator clip | BOOT |
