728 EDC17 C60 IROM TC1793
Cable 14P600KT02
| Pin | Color | Description |
| Pin 3,52 | Red | +12V |
| Pin 4 | Black | Ground |
| Pin 49 | White | CAN-H |
| Pin 33 | Green | CAN-L |

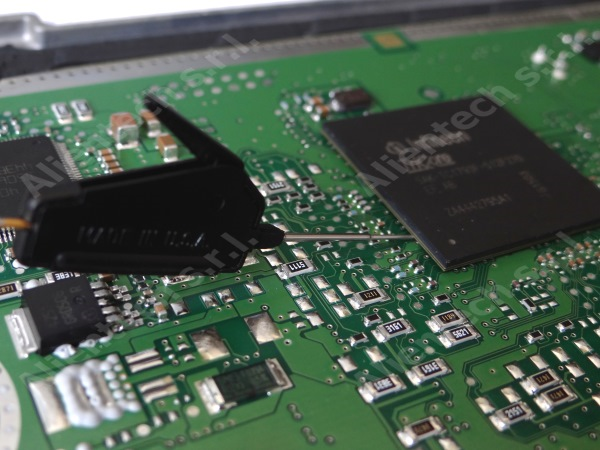

| Grabber Probe SMD | Gray with alligator clip | BOOT |
Cable 14P600KT06
| Pin | Color | Description |
|---|---|---|
| Pin 24 | Yellow | GPT1 |
| Pin 82 | Orange | GPT2 |
