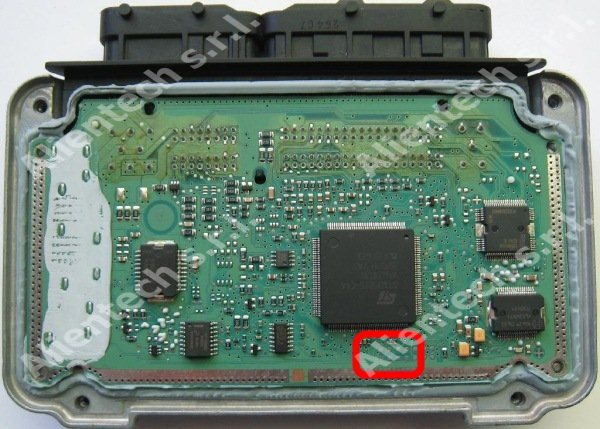

54 BOSCH ME7.9.52 1000 12V 1KR-FE Hardware 1 BOOT ST
Cable 14P600KT02

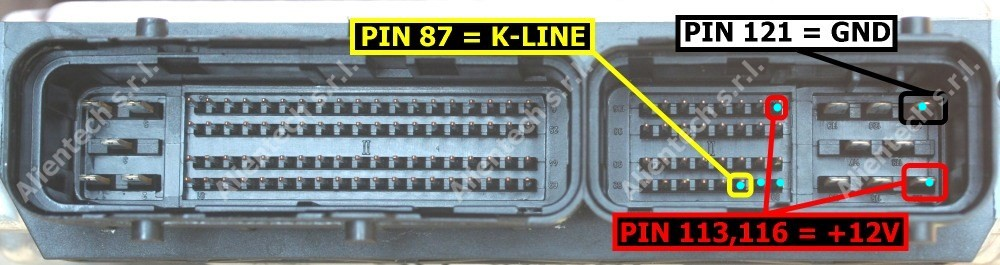

| Pin | Color | Description |
| Pin 113,116 | Red | +12V |
| Pin 121 | Black | Ground |
| Pin 26 | Yellow | K-Line |

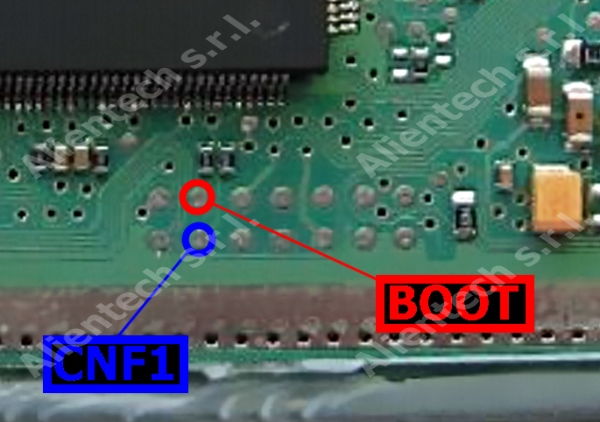

| Soldered wire | Gray with alligator clip | BOOT |
| Soldered wire | Blue with alligator clip | CNF1 |
Cable 14P600KT02
| Pin | Color | Description |
| Pin 113,116 | Red | +12V |
| Pin 121 | Black | Ground |
| Pin 26 | Yellow | K-Line |
| Soldered wire | Gray with alligator clip | BOOT |
| Soldered wire | Blue with alligator clip | CNF1 |
