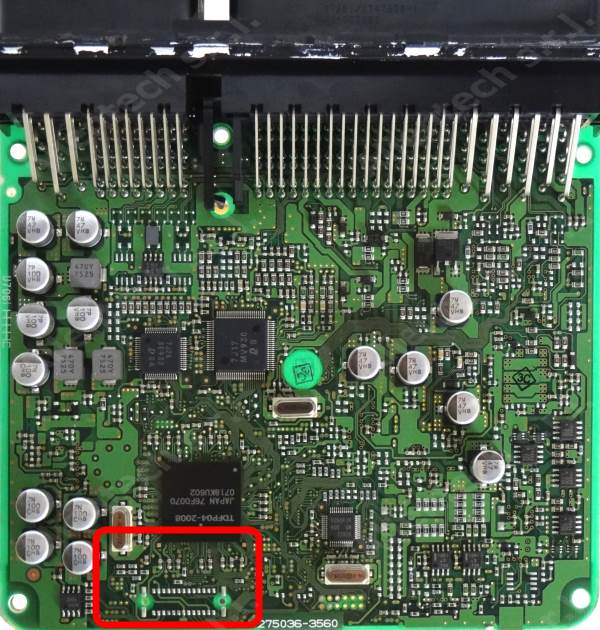

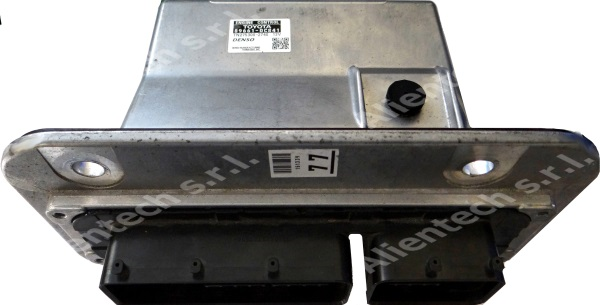

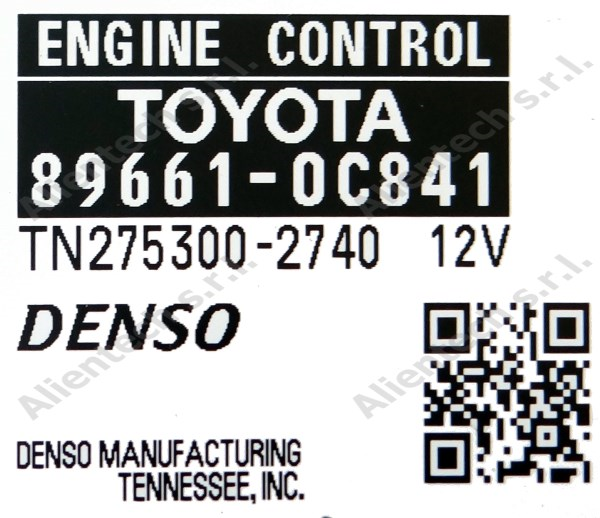

761 DENSO 275036-3560 5700 V8 VVT-i 3UR-FE NEC 76F00XX

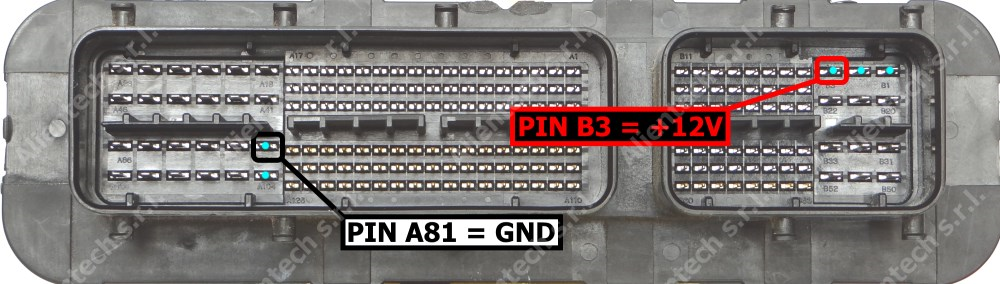

| Pin | Color | Description |
| Red | +12V | |
| Black | Ground |

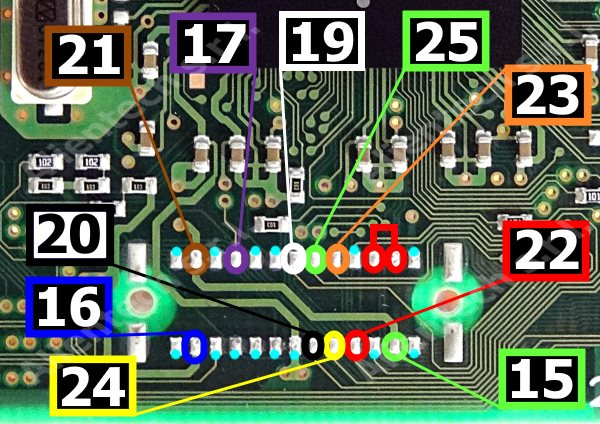

| Pin | Color |
|---|---|
| 11 | Not Used |
| 12 | Not Used |
| 13 | Not Used |
| 14 | Not Used |
| 15 | Green |
| 16 | Blue |
| 17 | Purple |

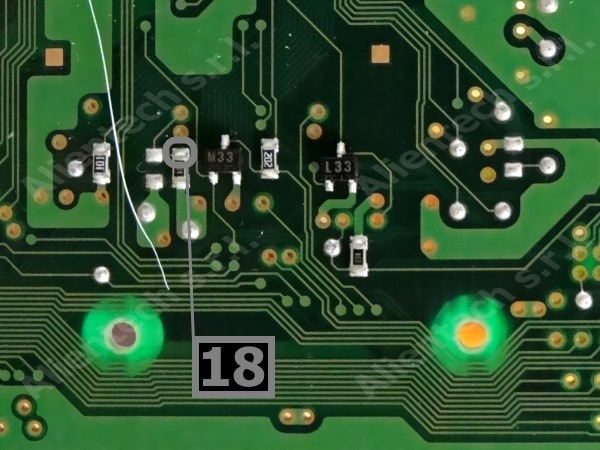

| 18 | Gray |
| 19 | White |
| 20 | Black |
| 21 | Brown |
| 22 | Red |
| 23 | Orange |
| 24 | Yellow |
| 25 | Green |
| 26 | Not Used |
